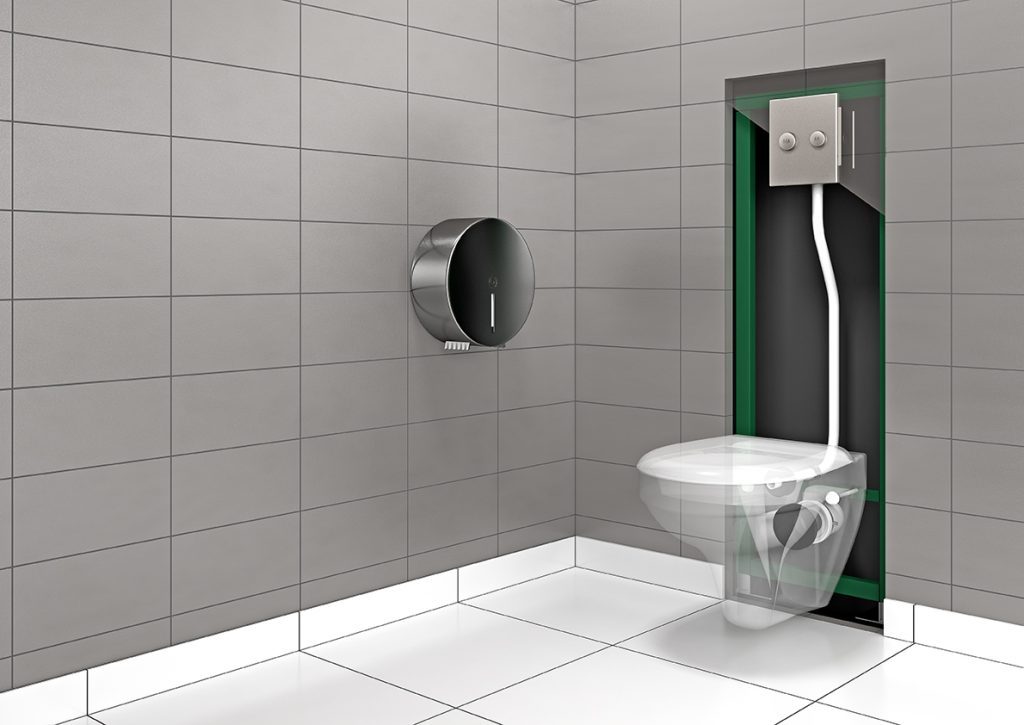

SELF-SUPPORTING MOUTING FRAME WITH DIRECT FLUSH – Self-supporting mounting frame P1000 XL E DVA Eco 2l-4l, Brushed chrome-plated front plate / 18524

Working pressure:
1 to 5 bar
Discharge volume per flush:
High volume : 4 liters, adjustable with wrench
Low volume : 2 liters, adjustable by the slider on the front plate
Anti-water-hammering device
Automatic 1 l/s flow regulator from 1.2 to 4 bar dynamic working pressure
Flow time:
4s ± 1s for high volume
2s ± 1s for low volume
Hydraulic supply:
On the double volume flush valve with integrated male G3 / 4 ” (20×27) shut-off valve
Ø28 mm connection on P1000
Ø32 mm connection on WC
Right or left power supply external to the box
Material and colour finish:
60 micron epoxy coated soldered steel mounting frame
Galvanized legs and floor fixing plates
Brass body flush valve
Brushed chrome-plated front plate
Security:
Patented anti-blocking “S” system preventing the tap to be blocked in open position to avoid continued water flow
Vacuum breaker device prevents the contamination of the water network from polluted water backflow
Delivered with:
1 Flush valve with stop valve integrated
1 Brass coupling nut Male Female 3/4” (20×27)
1 PVC angle tube Ø 32 mm and 1 junction nozzle male 55 mm
1 Extended straight PE tube 100 mm with adapter sleeve for connection to the bowl
1 WC outlet angle PVC pipe dia. 100 mm
Screw and dowel for toilet bowl fixing
Standards & approvals:
Acoustic class II
Brass body in accordance with EN 1982, EN 12164, EN 12165
Molded chrome-plated front plate in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
