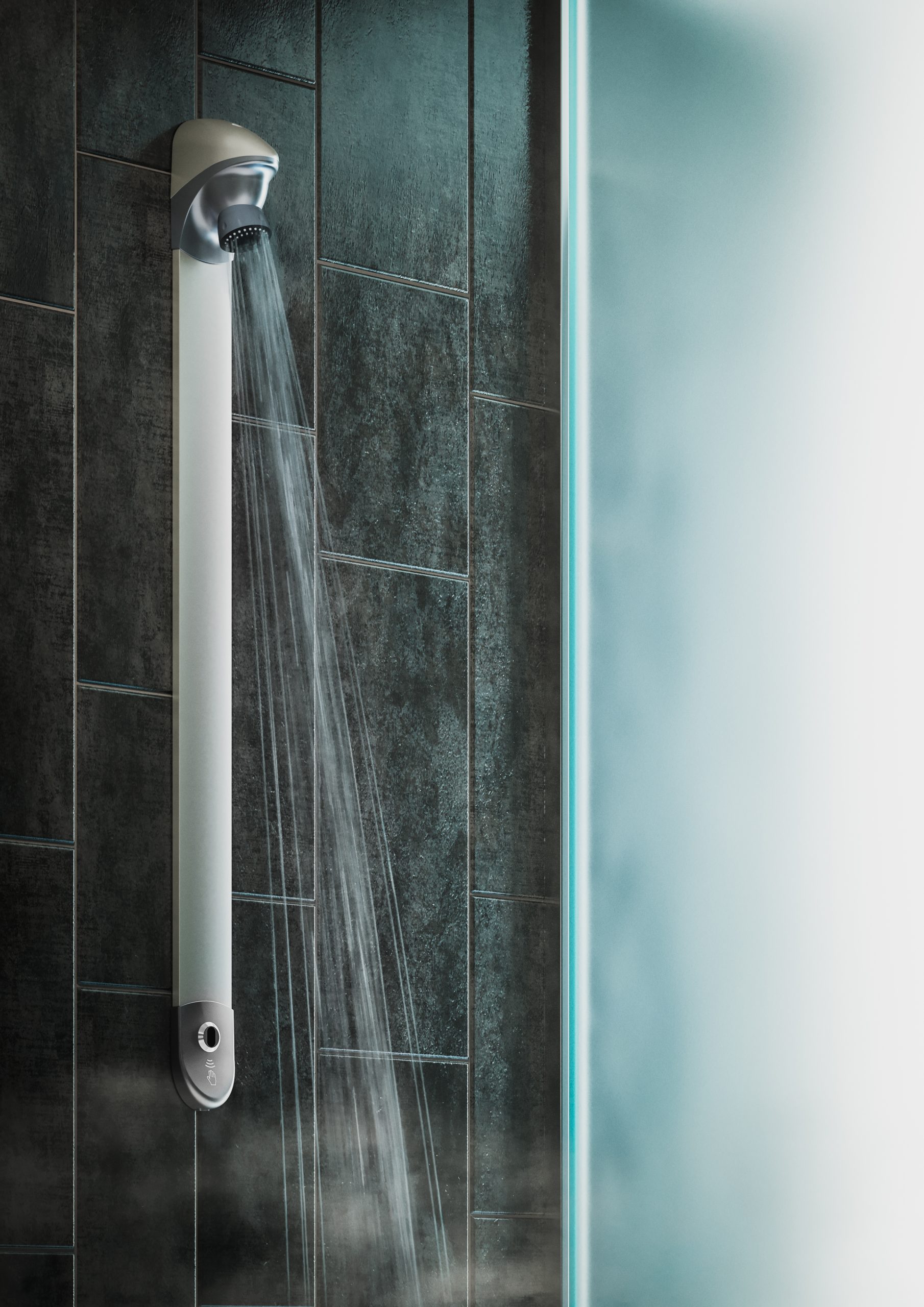

SHOWER – DL 400 E SENSOR – Single electronic / sensor shower tap with battery and straight stop valve / 27471

Working pressure:
1 to 5 bar

 Flow:
6 to 8 l/mn at 3 bar with integrated flow regulator
Anti-water-hammering design
Fixed shower head with orientable shower jet and anti-limescale spikes

 Operation:
Hygienic electronic detection cell suitable for elderly and disabled people
Detection range of the hand in front of the cell : 10 cm

 Flow time:
30 seconds – Adjustable through PRESTOCOM
Start / Stop function. Stop not possible during the first 10 seconds – Adjustable through PRESTOCOM
Adjustable duration and frequency of duty flush function through PRESTOCOM

 Hydraulic supply:
G 1/2″ (15×21) top water inlet with straight stop valve
For cold or premixed water

Power supply:
6 volt CRP2 lithium battery in integrated box

Material and colour finish:
Injected molded metal body and cover
Extruded profile in Aluminium-Magnésium-Silicium alloy 6060

Thermal resistance:
Resistant to a temperature of 75°C for 30 minute-thermal-shocks

Security:
Pre-set 30 seconds duty-flush every 24 hours after the last use to avoid growth of bacteria (legionella, pseudonomas …) adjustable through PRESTOCOM :
http://www.prestodatashare.com/espacedoc/Notes_Annexes/Documents/Q5347.pdf
Automatic shut-off of the solenoid valve in case of dead battery

Shipped with:
VBA screws and nylon plugs
MF G 1/2″ stop valve and filters

Standard & approvals:
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Brass UBA List compliant
