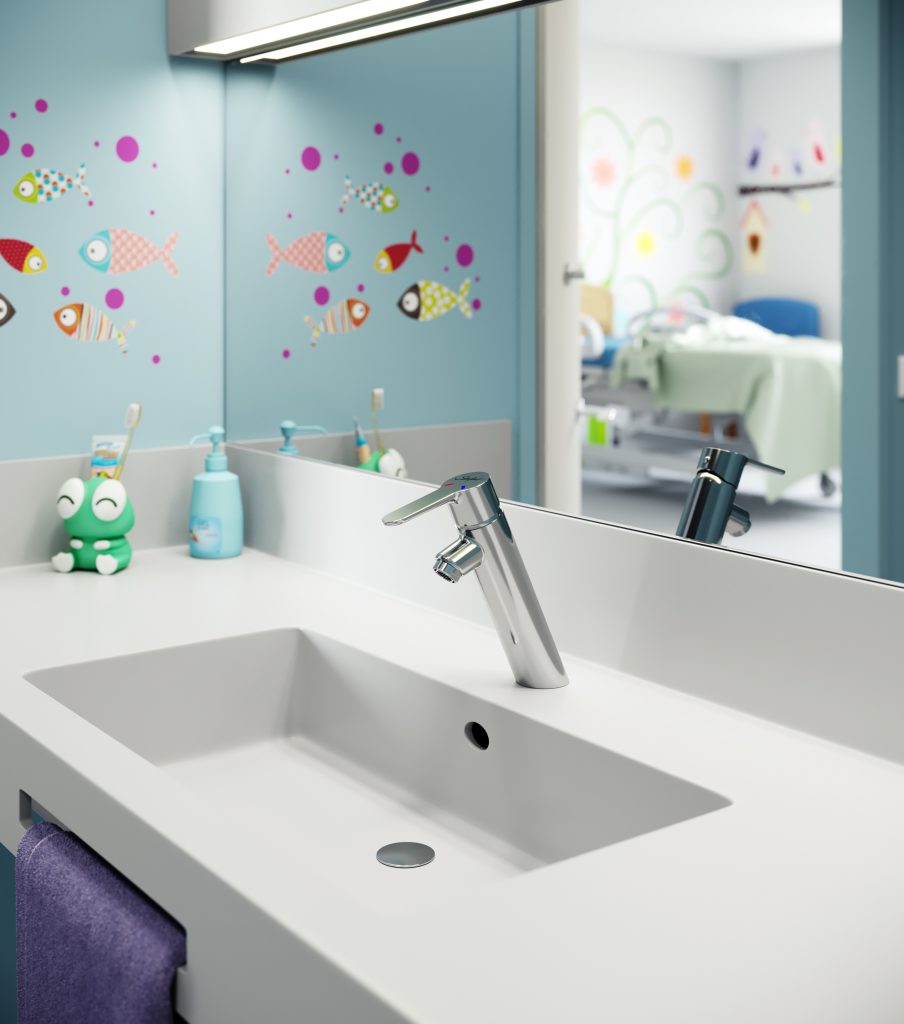

SANIFIRST – ROBINETTERIE SANTÉ – Wasbasin mixer with openwork lever and drain / 75842

 Benefits
Comfortable height under spout and projection, compliant to the French “NF Medical” norm
Body inside and outside smooth: limiting the fixation of the biofilm and the proliferation of bacteria
Very low water retention after the closure member
Openwork lever: facilitates grip and ergonomics
Modern design
Washbasin mixer
Height under spout : 100 mm
Projection: 106 mm
With drainage
 Lever
Openwork lever
Cartridge
Multifunctional 35 mm diameter ceramic cartridge: temperature limit stop with 7 adjustment positions, and maximum flow control.
Flow rate
Compliant to French Norm “NF Medical” norm, between 4 and 6 L/Min at 3 bar
Pressures
Min pressure: 1 bar
Recommended pressure: 3 bar – Avoid pressure differences greater than 1 bar between hot and cold water
Max pressure: 5 bar
Connection
Hoses with SPEX braided stainless steel sheath M10X1 EP G’3 / 8
Fixing by means of a 1 M8 rod clamping kit
Output
M 24X1 star-shaped flow straightener
