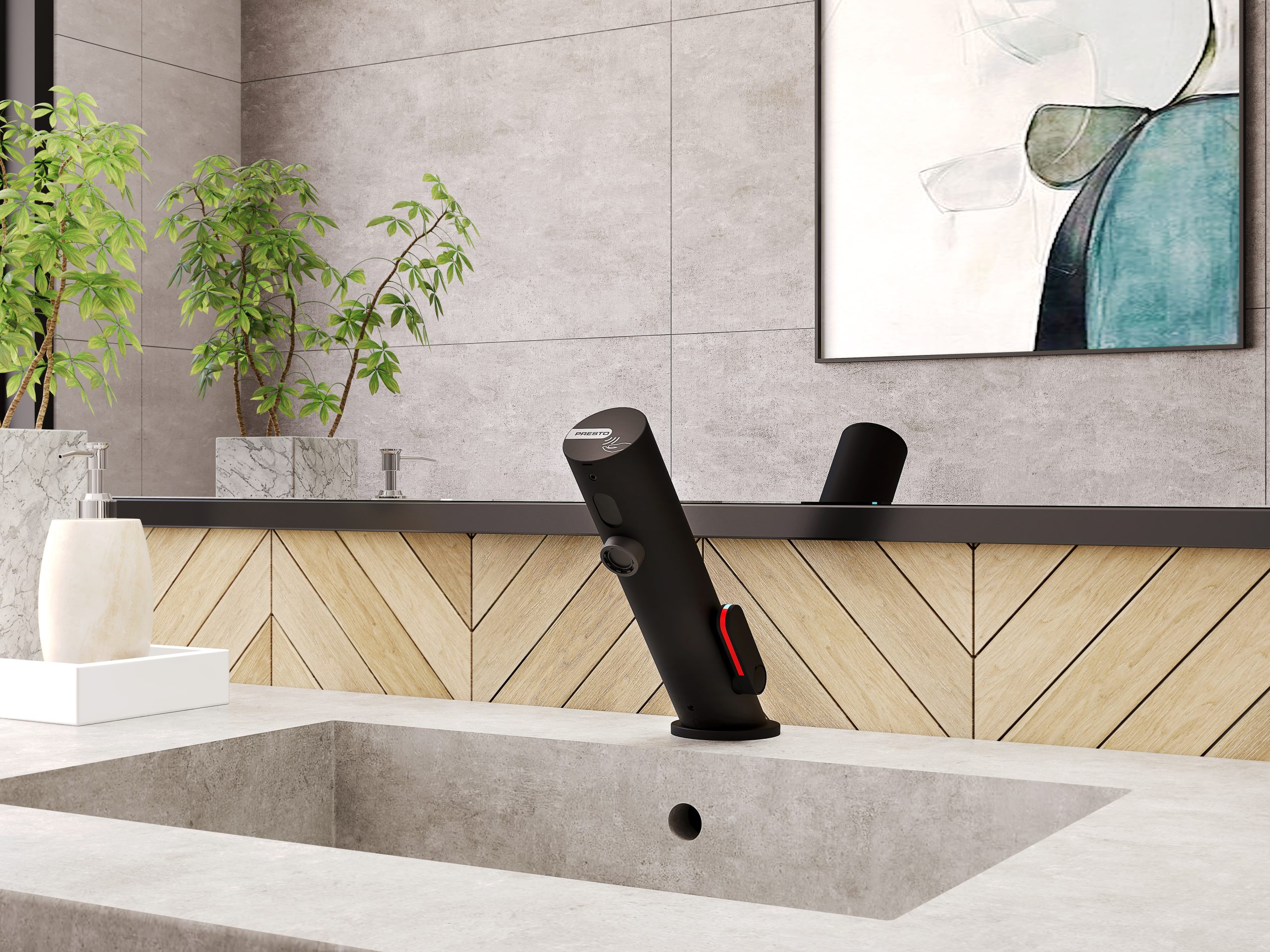

PRESTO LINEA® – Deck-mounted sensor mixer tap for washbasin, battery, 3l/min with stop valve / 57212

Working pressure:
1 to 5 bar
Function:
Starts and stops automatically by hand detection
Sensor trigger suitable for PRM, elderly, children and disabled people
Flow:
3l/min at 3 bar with integrated regulated anti-limescale aerator
Hydraulic supply:
F G 3/8″ (12×17) hoses
Power supply:
Integrated 3V CR123A lithium batteries (x2)
Material and colour finish:
Chrome-plated brass body with smooth inside body
Chrome-plated molded metal cover
Thermal resistance:
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
 Security:
Anti-overflow security time set to 30 seconds preventing the water to flow continuously
Automatic shutdown of solenoid valve in case of low battery or sensor damage
Duty flush 30 sec every 24h after last use (adjustable flow time and frequency)
Low battery alert (blinking led light)
Maximum temperature limitation with adjustable temperature stop
 Installation:
Recommended installation : 30 cm minimum between the sensor and the basin
Delivered with:
1 Brass clamping nut, 1 Gasket and 1 Washer
2 PEX hoses with revolving nuts, NF check valves and filter gaskets
2 M M G 3/8″ (12×17) stop valves
1 Self-adhesive sticker
1 Instruction manual
 Standards & approvals:
Brass body in accordance with NF EN1982, EN12164, NF EN 12165,
UBA list compliant
200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
