Working pressure :
1 to 5 bar
Function:
Starts and stops automatically by hand detection
Sensor trigger suitable for PRM, elderly, children and disabled people
Flow:
3l/min at 3 bar with integrated regulated anti-limescale aerator
Hydraulic supply :
G 1/2” (15×21) – Cold or premixed water
Integrated stop valve
Power supply :
Integrated 3V CR123A lithium batteries (x2)
Material and colour finish:
External brass body: chrome-plated
Internal lead-free brass body
Molded metal cover: chrome-plated
Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
Security :
Anti-overflow security time set to 30 seconds preventing the water to flow continuously
Automatic shutdown of solenoid valve in case of low battery or sensor damage
Duty flush 30 sec every 24h after last use (adjustable flow time and frequency with PRESTOCOM toolkit: https://www.presto.fr/apropos/prestocom/)
Smooth inner body for limiting biofilm binding and bacterial development
Low battery alert (blinking led light)
Installation
Recommended installation height : 30 cm above the bottom of the washbasin
Delivered with
1 wall rose
1 Filter gasket
1 Self-adhesive sticker
1 Instruction manual
Standards & approvals :
Lead-free brass in accordance with NF EN1982, EN12164, NF EN 12165, 4MS, RoHS, Reach, NSF-372, UBA list compliant
Dezincification compliant with ISO 6509 and NDZ
200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227

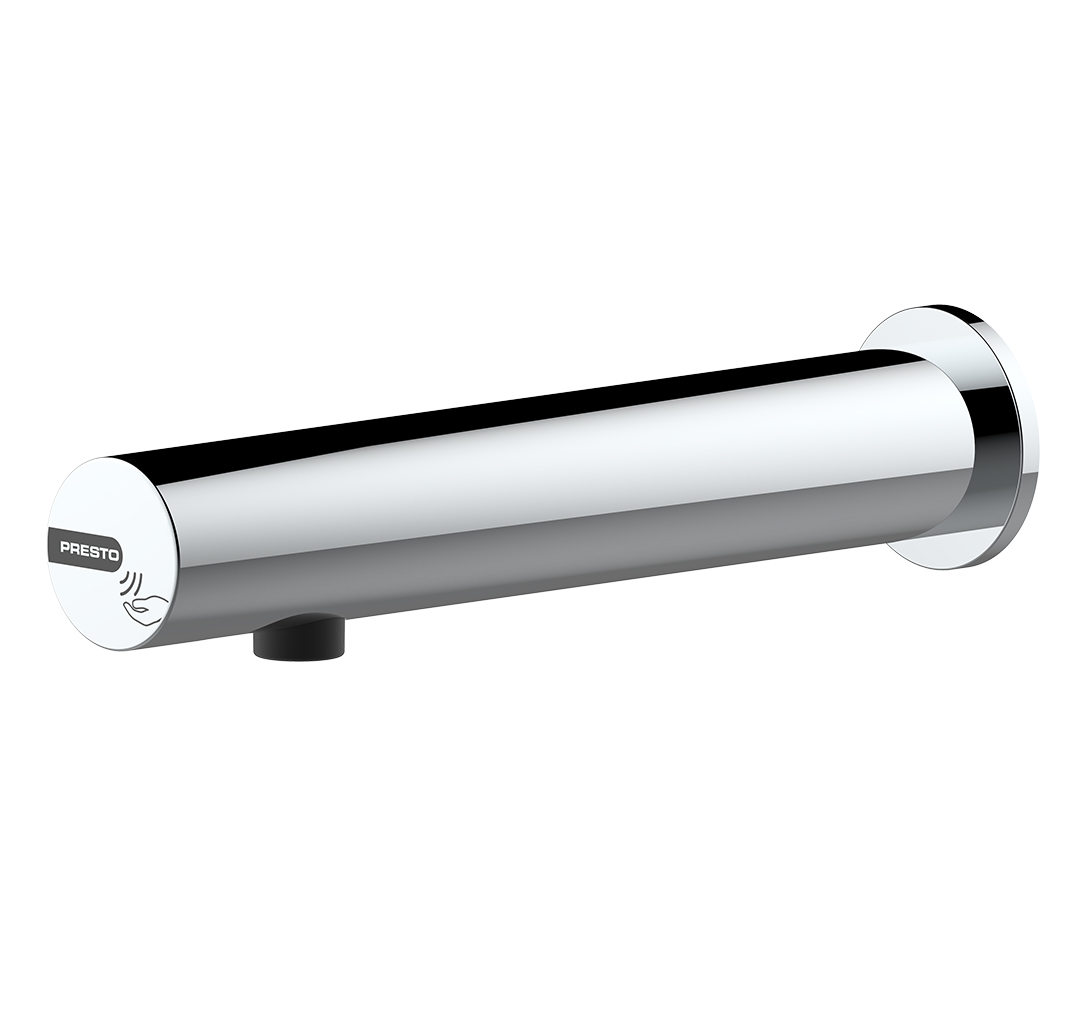

PRESTO LINEA® – Wall-mounted single sensor tap, all-integrated, battery, 3l/min / 57100
PRESTO (LES ROBINETS) : Siège Social: 7 rue Racine 92542 Montrouge Cedex – Site de Production: 4 rue Lavoisier 17110 St-Georges de Didonne – Tel: 01.46.12.34.56 – Fax: 01.40.92.00.12 – www.presto.fr
PRESTO LINEA®
57100 – Wall-mounted single sensor tap, all-integrated, battery, 3l/min
