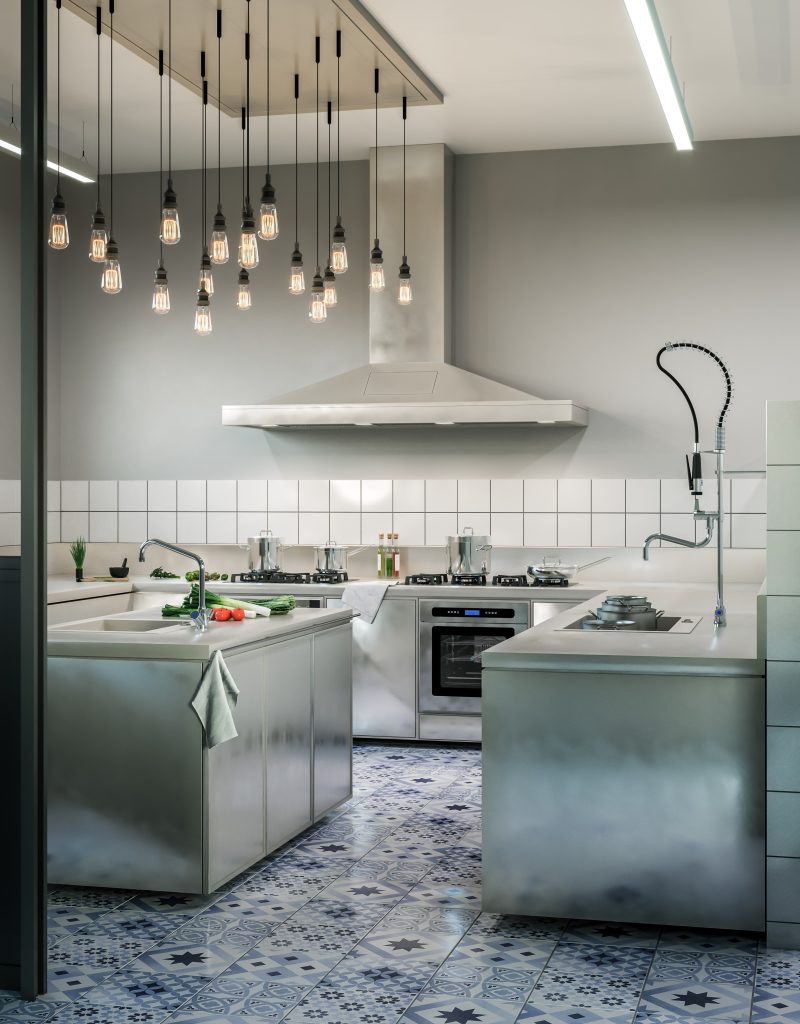

PRESTO CHEF – PROFESSIONNAL KITCHEN RANGE – Column –deck-mounted mixer – rinsing head / 70818

THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSD
(musculoskeletal disorder)
Reinforced body / column interface
Fast filling of tanks: 20L / min at 3 bar
Robust mixing handle – possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
TECHNICAL SPECIFICATIONS
 Model:
Single-lever mixer with ceramic cartridge with flow rate of 20L / min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 250 mm – adjustable
Black M 1/2” hand shower with grip surface limiting the risk of burns. Flow regulated at 12L / min. user adjustable spray: concentrated or wetting. Anti-scale shower
head. Locking hook for continuous flow. Integrated NF check valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
Interchangeable anti-tartar flow straightener
Recommended working pressure:
1 to 5 bars
 Flow rate:
20L /min at 3 bar
Hand shower: 12L /min at 3 bar
 Hydraulic supply:
G 1/2 ” (15x 21)
Material and color of finish:
Body, spout and column in chromed brass
Injected metal hook
Material compliant with the “UBA” list
 Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
 Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 ” Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) Lg 1m surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C
maximum
Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165
Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
